Webhooks

Sun* CI allow you to setup webhooks for repository. When the build is finished, we'll send a HTTP POST payload to the webhook's configured URL. Webhooks can be used to set up notifications or something else.

Add webhooks

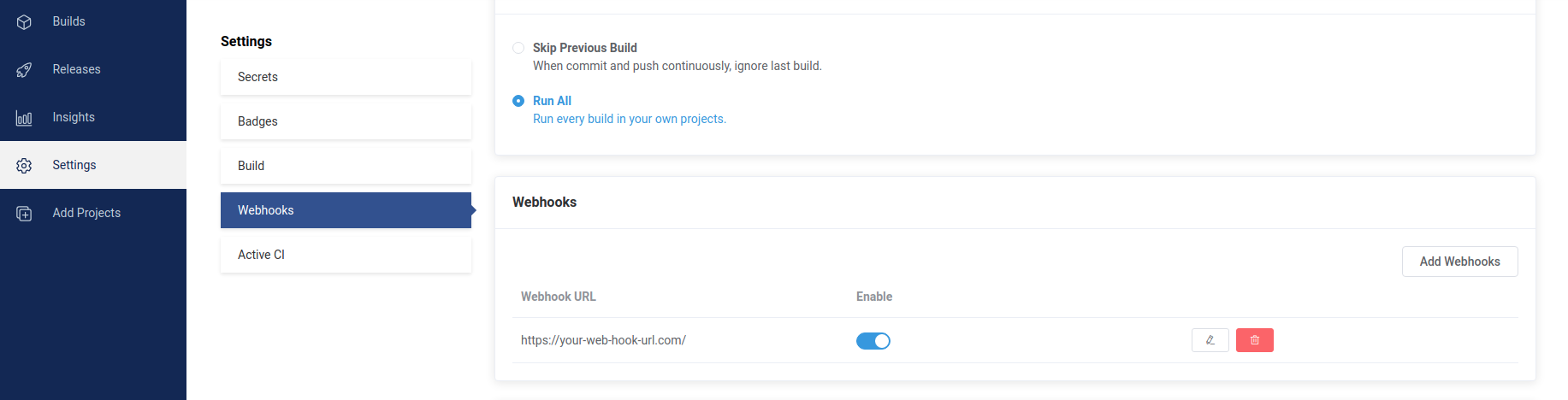

You can find your webhooks settings at project settings page.

Event

Below are described the supported events.

Build event

Triggered when a build was finished.

Available build.status:

• passed
• failed
• canceled
• running

Webhook payload object

Key	Type	Description
event	string	Most webhook payloads contain an event property that contains the specific activity that triggered the event.
build	object	Build's information such as status, event from github, jobs, ...
repository	object	The repository where the event occurred. Webhook payloads contain the repository property when the event occurs from activity in a repository.

Payload example

{
  "event": "build",
  "build": {
    "id": 573924,
    "repository_id": 78518,
    "number": 97,
    "status": "passed",
    "event": "push",
    "action": "create",
    "branch": "master",
    "ref": "master",
    "pr_number": null,
    "commit": "77489c7a35378fa943f0afd95102c576f4ab8842",
    "message": "Update .sun-ci.yml",
    "message_title": "Update .sun-ci.yml",
    "message_body": "",
    "link": "https://github.com/xxxx/xxxx/commit/77489c7a35378fa943f0afd95102c576f4ab8842e",
    "author": "xxxx",
    "sender": "xxxx",
    "sender_avatar": "https://avatars.githubusercontent.com/u/7238715741?v=4",
    "duration": 95,
    "config_error": false,
    "config_warning": true,
    "started_at": "2022-10-11T08:55:36+07:00",
    "finished_at": "2022-10-11T08:57:11+07:00",
    "created_at": "2022-10-11T08:55:31+07:00",
    "updated_at": "2022-10-11T08:57:11+07:00"
  },
  "repository": {
    "id": 78518,
    "scm": "github",
    "namespace": "xxxx",
    "name": "xxxx"
  }
}

Release event

Triggered when your build is finish and has release job.

Available build.status:

• passed
• failed
• canceled
• running

Webhook payload object

Key	Type	Description
event	string	Most webhook payloads contain an event property that contains the specific activity that triggered the event.
build	object	Build's information
release	object	Contain information such as enviroment, url, jobs
repository	object	The repository where the event occurred. Webhook payloads contain the repository property when the event occurs from activity in a repository.

Payload example

{
    "event": "release",
    "build": {
        "id": 5656,
        "repository_id": 8898,
        "number": 72,
        "status": "passed",
        "message": "Release passed on Sun* CI",
        "event": "pull_request",
        "action": "opened",
        "branch": "master",
        "ref": "refs/pull/33/head",
        "pr_number": 33,
        "commit": "3df5a5e9e2c5f807f169ddb023cec40c57a650bf",
        "message": "feat(api): add more release",
        "message_title": "feat(api): add more release",
        "message_body": null,
        "link": "https://github.com/sun-ci/sun-ci-repo/pull/33",
        "author": "sun-ci",
        "sender": "sun-ci",
        "sender_avatar": "https://avatars.githubusercontent.com/u/78715700?v=4",
        "duration": 126,
        "config_error": false,
        "config_warning": false,
        "started_at": "2021-07-13T15:23:42+07:00",
        "finished_at": "2021-07-13T15:25:48+07:00",
        "created_at": "2021-07-13T15:21:46+07:00",
        "updated_at": "2021-07-13T15:25:48+07:00"
    },
    "release": {
        "environment": "production",
        "url": "https://ci.sun-asterisk.com",
        "job": {
            "name": "Say bye again!",
            "stage": {
                "id": 17087,
                "build_id": 5656,
                "name": "Test",
                "status": "passed",
                "created_at": "2021-07-13T08:21:46.000000Z",
                "updated_at": "2021-07-13T08:25:48.000000Z",
                "number": 3
            },
            "status": "passed",
            "status_message": "Release passed on Sun* CI",
            "started_at": "2021-07-13T15:25:36+07:00",
            "finished_at": "2021-07-13T15:25:48+07:00"
        }
    },
    "repository": {
        "id": 8898,
        "scm": "github",
        "namespace": "sun-ci",
        "name": "sun-ci-repo"
    }
}

Test result event

Triggered when your build has config test_result or coverage.

Webhook payload object

Key	Type	Description
event	string	Most webhook payloads contain an event property that contains the specific activity that triggered the event.
build	object	Build's information
test_result	object	Contain information such as code coverage, test result
repository	object	The repository where the event occurred. Webhook payloads contain the repository property when the event occurs from activity in a repository.

Payload example

{
  "event": "test_result",
  "build": {
    "id": 573924,
    "repository_id": 785118,
    "number": 97,
    "status": "passed",
    "event": "push",
    "action": "create",
    "branch": "master",
    "ref": "master",
    "pr_number": null,
    "commit": "77489c7a35378fa943f0afd95102c57z6f4ab8e842",
    "message": "Update .sun-ci.yml",
    "message_title": "Update .sun-ci.yml",
    "message_body": "",
    "link": "https://github.com/xxxx/xxxx/commit/77489c7a35378fa943f0afd95102c576f4ab8842e",
    "author": "author",
    "sender": "sender",
    "sender_avatar": "https://avatars.githubusercontent.com/u/7238715741?v=4",
    "duration": 95,
    "config_error": false,
    "config_warning": true,
    "started_at": "2022-10-11T08:55:36+07:00",
    "finished_at": "2022-10-11T08:57:11+07:00",
    "created_at": "2022-10-11T08:55:31+07:00",
    "updated_at": "2022-10-11T08:57:11+07:00"
  },
  "test_result": {
    "id": 146618,
    "tests": 90,
    "assertions": 153,
    "errors": 0,
    "warnings": 0,
    "failures": 0,
    "skipped": 0,
    "time": "7.193198",
    "coverage": "18.98",
    "last_coverage": "18.98",
    "line": 1117,
    "covered_line": 212,
    "method": 255,
    "covered_method": 59,
    "branch": 0,
    "covered_branch": 0,
    "created_at": "2022-10-11T08:57:56+07:00",
    "updated_at": "2022-10-11T08:57:56+07:00"
  },
  "repository": {
    "id": 785118,
    "scm": "github",
    "namespace": "xxxx",
    "name": "xxxx"
  }
}

Sample notifications using Slack Forwarder

This is a example send notifications to Slack with Sun* CI payload. Perform the following steps to enable Slack notifications:

1. Go to Slack Forwarder page and login.

2. In the left sidebar, select Webhooks -> Create.

3. Enter webhook name, go to slack chanel to add slack forwarder app and copy chanel id -> Save

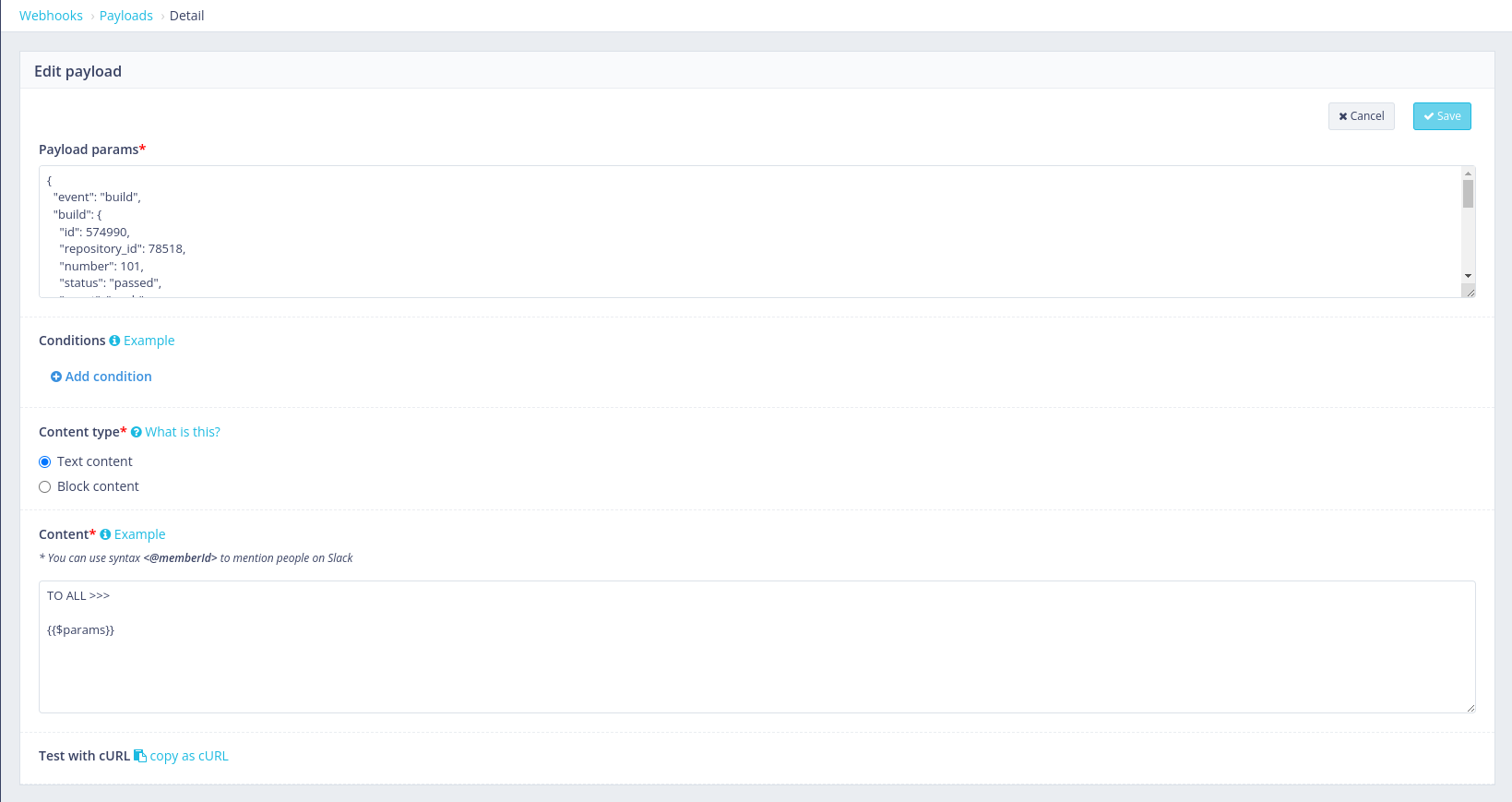

4. You need to create payloads for webhooks too, go down to payloads section chose Create.

5. Enter payload params for build/release event above and enter content you want to show in Slack or just copy this content below -> Create/Save.

TO ALL >>>
[info][title] Build {!! $params.build.status !!} on Sun* CI  [/title]
Event: {!! $params.build.event !!}
Branch: {!! $params.build.branch !!}
Status: {!! $params.build.status !!}
Message: {!! $params.build.message !!}

{!! $params.build.message_title !!}
Link: https://ci.sun-asterisk.com/github/{!! $params.build.repository.namespace !!}/{!! $params.build.repository.name !!}/builds/{!! $params.build.number !!}
[/info]

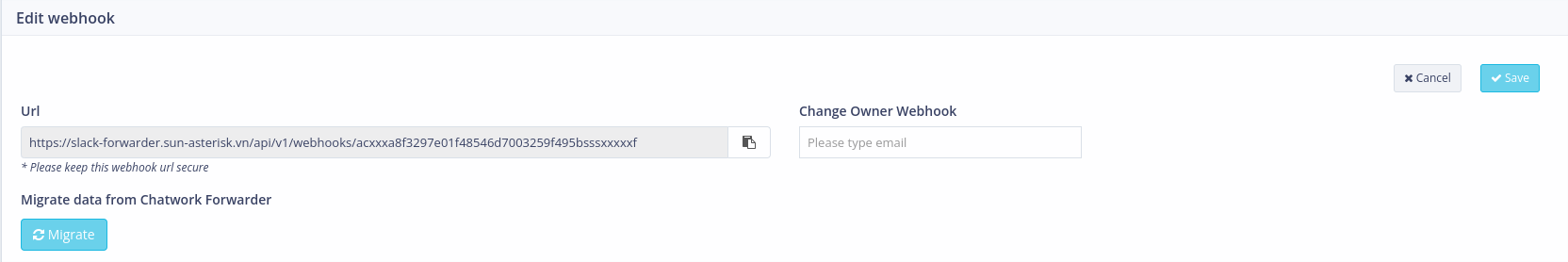

6. Copy webhook url and redirect to Sun* CI project settings page.

7. Create new webhook with slack forwarder url.

If you using our content example when setting Slack Forwarder, Slack notifications will look like:
